Python Series Turbine

Kaplan Type Low Head Water Turbine

Python Series Turbine

5 to 100 KW

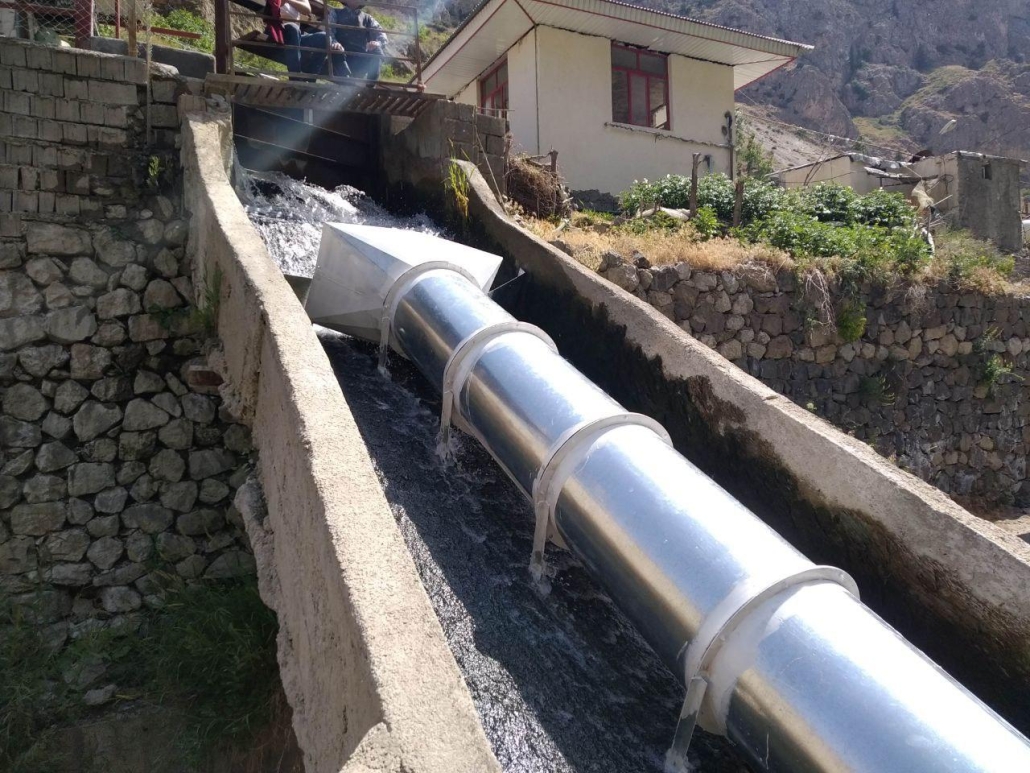

Python series water turbine is a Kaplan axial flow turbine, which is suitable for passing flows of more than one square meter and with a head between 2 and 10 meters. This type of turbines can be installed by the rivers or at the outlet of fish farming centers and when the water flow enters the channel and the water passes over the turbine blades, electric energy is produced.

This type of turbines have a good performance in the output power range of 5 to 100 kW, and in order to install and operate Python series water turbines, the water flow path must be diverted and the water must be directed into the channels related to this turbine.

This water turbine is of the low Kaplan head type and has an efficiency of about 85%. The average life of this type of turbine is estimated between 15 and 20 years depending on the type of protection and maintenance.
